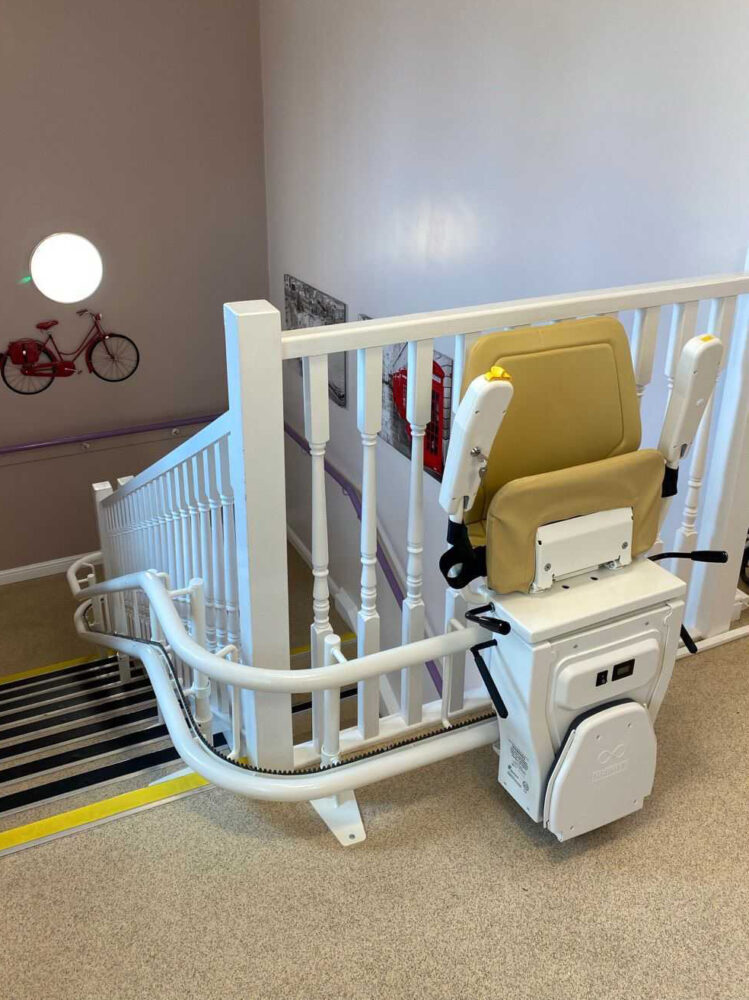

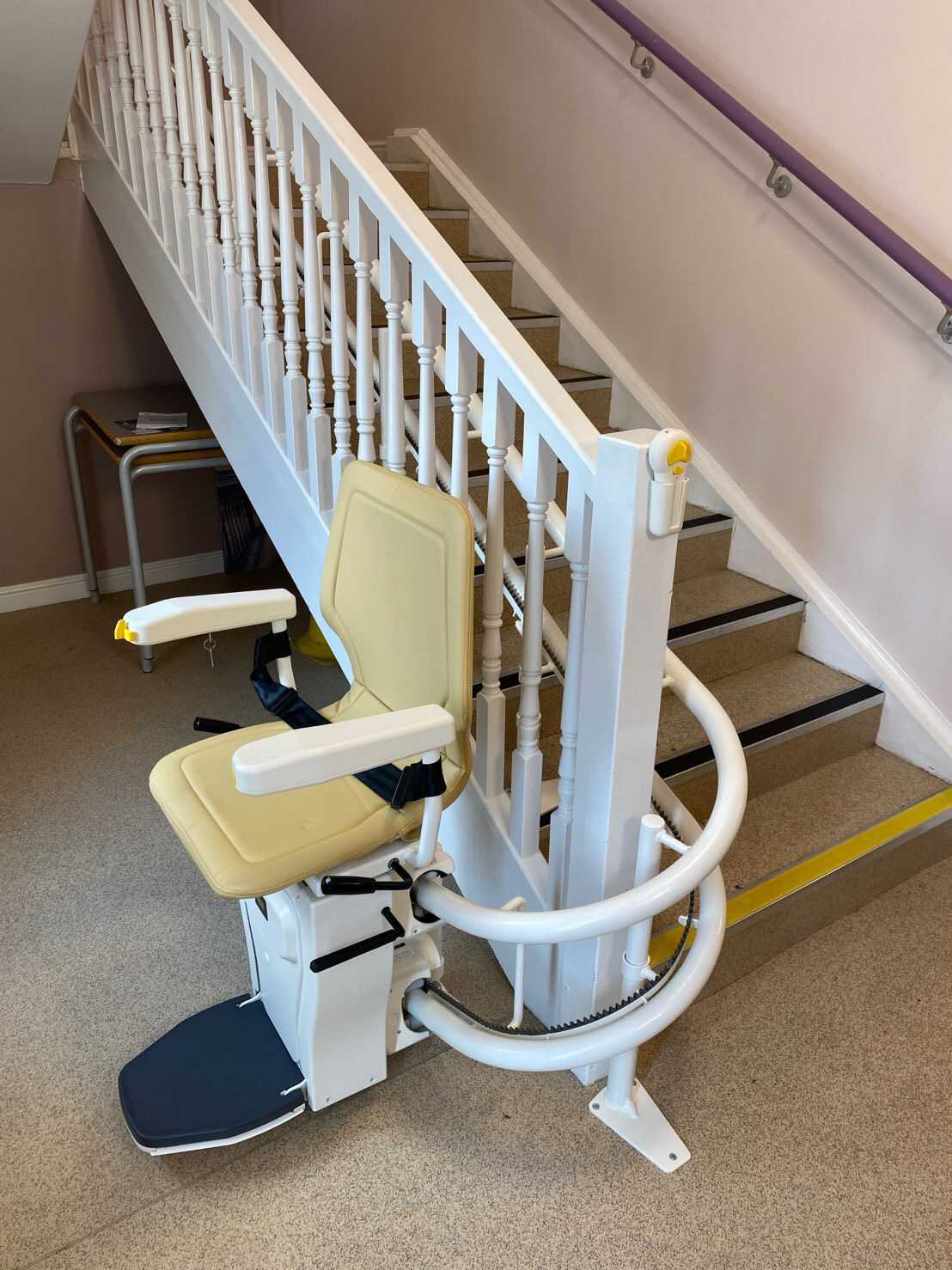

Up Curved Stairlift
This curved stairlift is suitable for a staircase with one or more bends. The UP Stairlift is always delivered with an automatic swivel chair, footrest, and intercom and is also available in 4 modern colors.
The following documents are PDFs that can be downloaded.
Starlift makes every effort to publish accurate information. Specifications and options are subject to change without notice.
- Stairfriend Brochure
- UP Curved Stairlift Drawings/Measurements
- Speed: 0.15 meters per second
- Method of drive: Rack and pinion
- Power input: 24V DC (battery)
- Max. weight: 125 KG / 275 lbs / 20 stone
- Rails: Extruded aluminum, casted aluminum
- Power supply: 50-60Hz, 90-240V AC
Options: Choice of seat, 90˚ or 180˚ parking, top or bottom overrun, keyless access, emergency stop button, and extra long seatbelt
- Applications: Residential, commercial*, indoor
- Standard Capacity: 350 lb (160 kg)
- Maximum Travel: 45′ (13.72 m)
- Nominal Speed: 20 ft/min, (0.1 m/s), 12 ft/min (0.06 m/s) through curves
- Motor: 1/2 hp, 24V (DC)
- Fold-up width: 15.5″, 39 cm
- Fold-out width: 24.5″, 62 cm
- Range of incline: 0˚ to 52˚
*where permitted by code
KEEP YOUR COSTS LOW WHILE REMAINING SAFE
Handicare Stairlifts
The following documents are PDFs that can be downloaded.
Starlift makes every effort to publish accurate information. Specifications and options are subject to change without notice.
- Remote control: With light pressure on the call and send buttons the lift is always within arm’s reach.
- Joystick: This easy to use control can be positioned on the left or right arm.
- Key switch: The key can be removed to prevent unauthorized use
- Safety belt: Fitted as standard for your protection and safety.
- Rail colors: The rail is available in three colors to suit your décor. For an additional fee the rail can be finished in any RAL color.
Options: Choice of seat, 90˚ or 180˚ parking, top or bottom overrun, keyless access, emergency stop button, and extra long seatbelt.
- Applications: Residential, commercial*, indoor
- Standard Capacity: 350 lb (160 kg)
- Maximum Travel: 45′ (13.72 m)
- Nominal Speed: 20 ft/min, (0.1 m/s), 12 ft/min (0.06 m/s) through curves
- Motor: 1/2 hp, 24V (DC)
- Fold-up width: 15.5″, 39 cm
- Fold-out width: 24.5″, 62 cm
- Range of incline: 0˚ to 52˚
*where permitted by code
KEEP YOUR COSTS LOW WHILE REMAINING SAFE
STAIRFRIEND CURVED STAIRLIFT
The Savaria Stairfriend curved stairlift can eliminate the barrier of stairs providing safe and easy access to another floor. The Stairfriend is designed to be installed on stairs that feature a curve, an intermediate landing, or when out-of-the-way parking is desired. Smooth riding, comfortable and reliable, the Savaria curved stairlift features a double rail system for strength and durability.
The lift is easy to operate with controls on the armrest as well as two included radio frequency remote controls. Savaria custom bends the rail to your exact specifications based on computer-aided design software and photo measuring. This is all done with industry leading lead times. Choose from 2 seat designs to suit your taste and comfort needs.
The following documents are PDFs that can be downloaded.
Starlift makes every effort to publish accurate information. Specifications and options are subject to change without notice.
-
Battery powered: Operates through power interruptions with charging stations at top and bottom and optional intermediate landings
-
On-board controls: With soft start and smooth stop operation, seat swivels and locks into position for safe boarding and deboarding, retractable seat belt
-
Radio frequency remote controls: Offer greater range and control of device from other rooms
-
Overspeed governor and obstruction sensors: To stop the chair if it meets an object in both up or down travel directions
- Reliable rack and pinion drive: With sturdy, twin steel tube rail construction
- Custom-built: For curves, turns, landings and parking, and can be mounted on either side of the stairs
- Onboard diagnostics: To identify any service issues
- Finish options: Choice of seat with wipe-clean synthetic leather
- Warranty: 36 months parts
Options: Choice of seat, 90˚ or 180˚ parking, top or bottom overrun, keyless access, emergency stop button, and extra long seatbelt
-
Applications: Residential, commercial*, indoor
-
Standard Capacity: 350 lb (160 kg)
-
Maximum Travel: 45′ (13.72 m)
-
Nominal Speed: 20 ft/min, (0.1 m/s), 12 ft/min (0.06 m/s) through curves
-
Motor: 1/2 hp, 24V (DC)
-
Fold-up width: 15.5″, 39 cm
-
Fold-out width: 24.5″, 62 cm
-
Range of incline: 0˚ to 52˚
*where permitted by code
