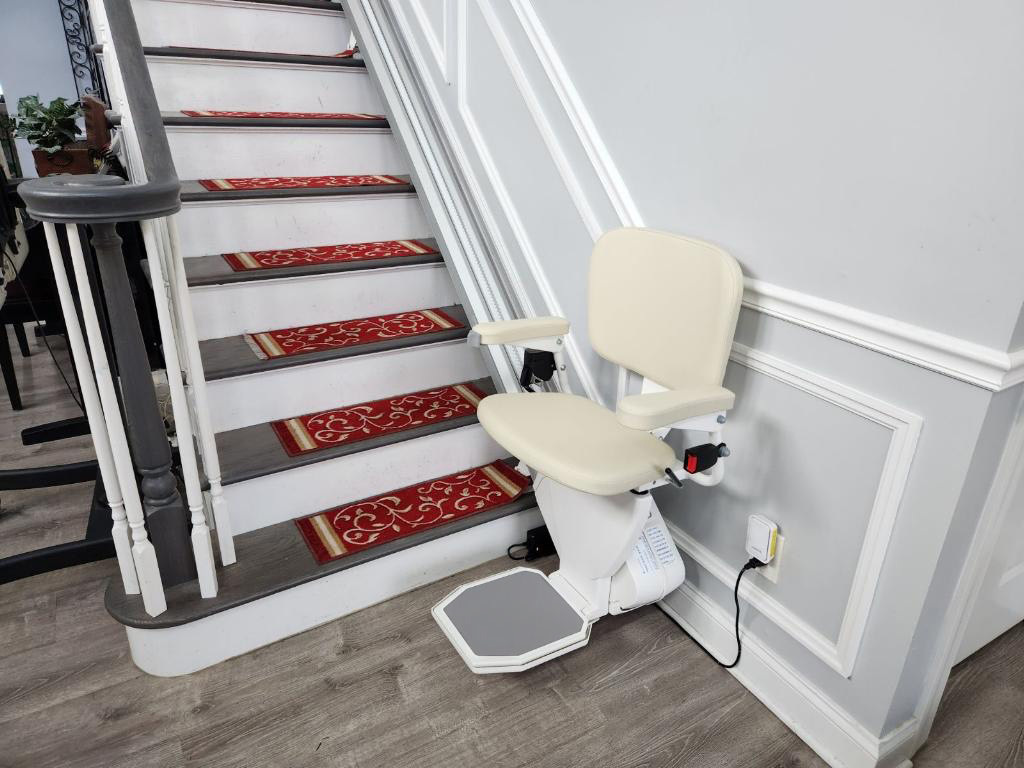

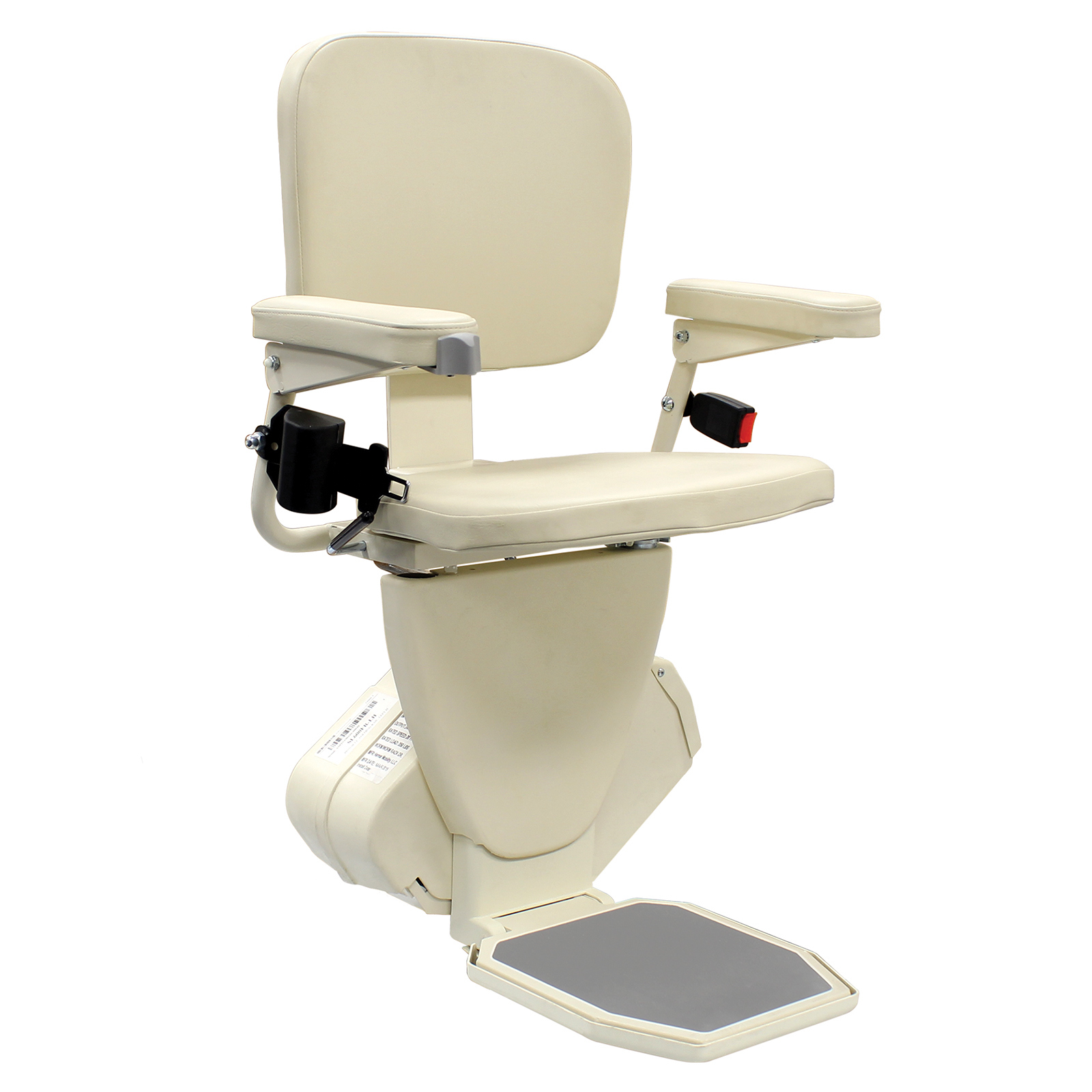

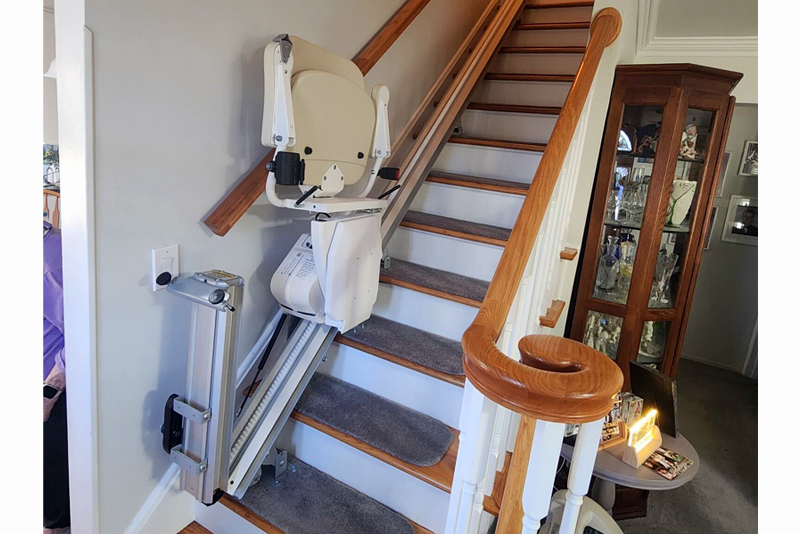

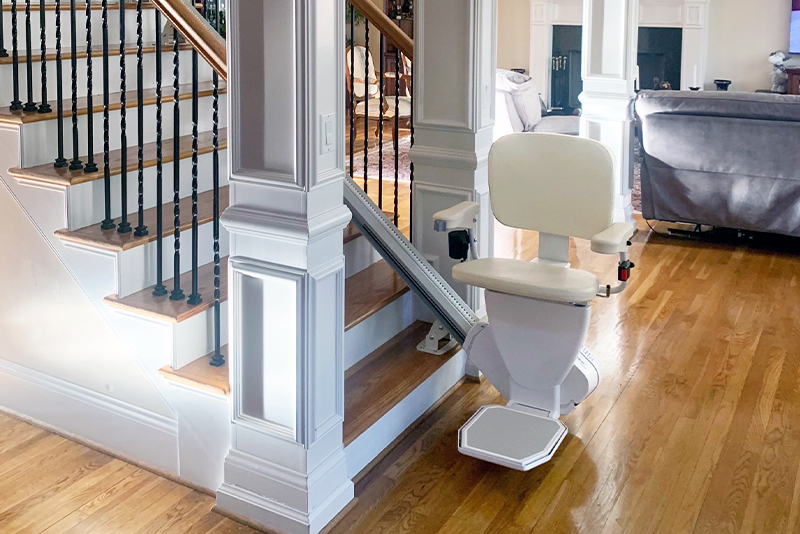

Rave II Stair Lift
The Rave II Stair Lift is one of a kind. Ameriglide designs are crafted to fit your needs, staircase, and decor.
The following documents are PDFs that can be downloaded.
Starlift makes every effort to publish accurate information. Specifications and options are subject to change without notice.
- Weight Capacity: 350 lbs
- Drive System: Polymer Worm/Worm-Rack
- Lift Speed: 20 Feet per Minute
- Seat: 19″W x 16.5″D x 18″H
- Folded Width: 13.75″
- Nonfolding Width: 11″
- Max Rail Length: 70 feet
- Warranty: 2yr drive train, 2yr parts, 1yr batery
Options: Ultra-Compact Design, Durable & Long-lasting, Enhanced Saftey & Comfort, Folding Rail Option, Modern & styish Look
- Applications: Residential, commercial*, indoor
- Standard Capacity: 350 lb (160 kg)
- Maximum Travel: 70″
- Nominal Speed: 20 ft/min, (0.1 m/s), 12 ft/min (0.06 m/s) through curves
- Motor: 1/2 hp, 24V (DC)
- Seat Height: 18″
*where permitted by code

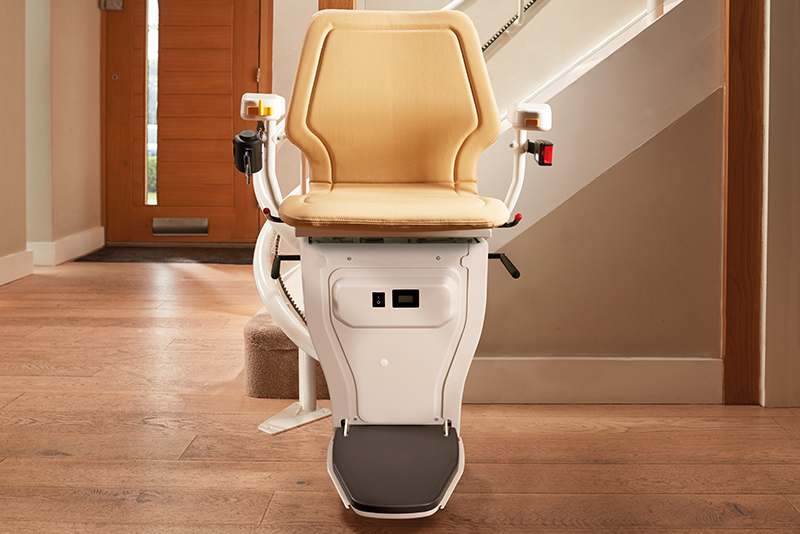

Handicare Stairlifts
The following documents are PDFs that can be downloaded.
Savaria makes every effort to publish accurate information. Specifications and options are subject to change without notice.
- Weight limit: 309 lbs
- Slim profile of 12.6 in when folded
- Continuous charging function
- Fold-up seat, footrest, and armrests save space for other stair users
- Safety sensors immediately stop the lift if anything is detected in its path
- EasyGlide technology ensures a smooth ride up and down the stairs with a gentle gliding stop
- Adjustable footrest ensures the perfect fit for each user
- Manual or powered 80-degree swivel seat for safer transfer onto and off the lift
- Upgradable to powered swivel and footrest options
- Four brush heads constantly sweep away dust and hair from the rail
- Key switch prevents unauthorized use
- Vanilla beige leatherette finished seat for easy cleaning
- Footrest features textured grips for greater traction
- Manual emergency stop
- Patented multi-drive provide constant power to your lift
- Two remote controls included
- DC plug-in power
- Battery backup in the event of a power outage
Optional Configurations: For installation on either side of the stairs
Rail extension brackets: To create no intrusion at top landing
Outdoor package: Suitable for moderate climates, includes stainless steel rack
and support legs, and zinc hardware for rust resistance; UV-rated, water repellent closed cell
foam seat with cover and clip seatbelt; RF remote controls; and upgraded
battery for long-lasting charge in varying temperatures
Other Options: Continuous charge system, flip-up rail for bottom landing, emergency stop button and radio frequency remote controls.
- Applications: Residential, indoor, straight-run stairway
- Minimum swivel radius: 25.39in
- Wall to inner seat back: 2.36in
- Seat depth: 15.35in
- Minimum folded width to footplate: 12.60in
- Minimum open width to edge footplate: 20.87in
- Armrest width – external: 22.64in
- Armrest width – internal: 17.72in
- Seat back height: 15.75in
- Footplate to seat height: 16.93 – 20.47in
- Minimum footplate height: 2.76in
- Minimum track intrusion into staircase: 6.30in
- Maximum weight limit: 30-45° – 309 lbs /
22st
46-50° – 287 lbs /
20st - Speed: 0.15m/sec
- Staircase angle: 30-50°

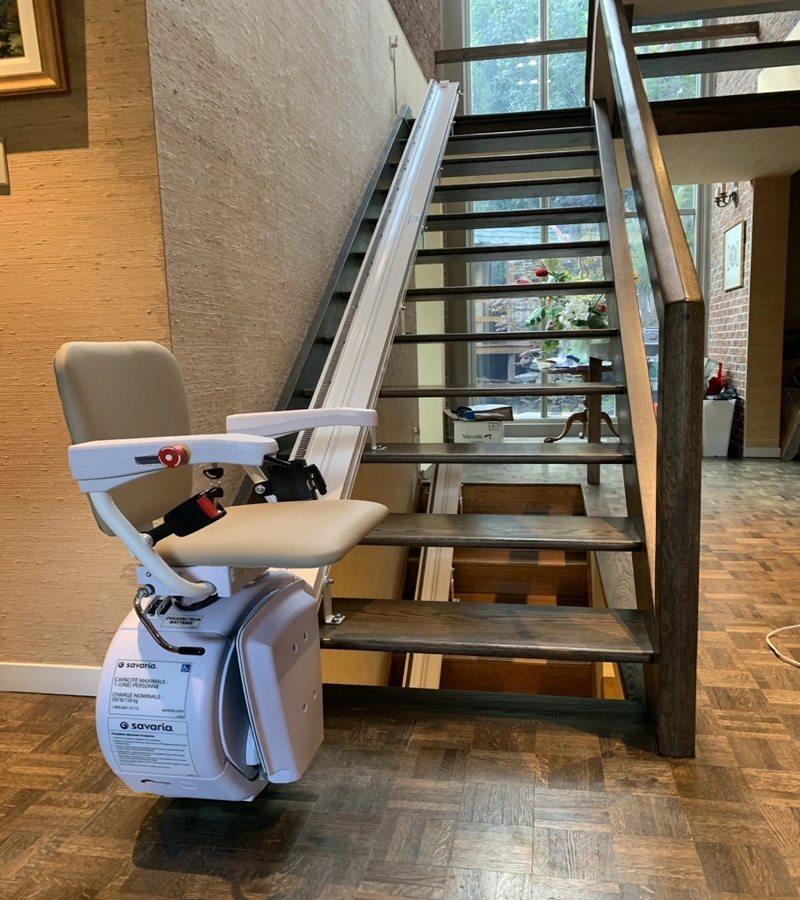

K2 STAIRLIFT
The Savaria K2 straight stairlift features the most compact folded depth on the market, keeping your stairs clear when the lift is not in use. This home stairlift is ideal for larger households with differing accessibility needs. Smooth-riding with a comfortable seat, the K2 Savaria stairlift transports you over the barrier of stairs, giving you the freedom to stay in the home you love. With a new stairlift from K2, you can move up, not out!
With a 350 lb capacity* and adjustable arm width, the K2 home stairlift is well-suited for a wide range of comfort needs. Obstruction sensors, a retractable seat belt, and overspeed governor all provide added safety features. The lift operates on a battery-powered system with built in charging, which allows the lift to operate several times even during a power failure. The K2 is also available with an optional outdoor package, suitable for moderate climates.
The following documents are PDFs that can be downloaded.
Savaria makes every effort to publish accurate information. Specifications and options are subject to change without notice.
-
Ultra slim: Folded size of only 10.75″, the smallest profile on the market to keep the unit out of the way when not in use
Quiet, smooth-riding operation: From the rack and pinion drive system
Battery operated: Built-in charging on the top and bottom of the rail so the chair can be used several times even during a power failure
LED status lights: To alert of any issues
Obstacle sensor system: On the carriage and footrest to stop the chair if it encounters an obstacle
Safety features: Swivel and lock seat at top landing, retractable seat belt, anti-slip footrest, obstacle sensors
Easy operation: Includes 2 infrared remote controls plus toggle switch on arm rest
Comfortable and durable seat: With width-adjustable arms up to 20″ wide
Fast installation: To enjoy your stair lift quicker
Warranty: 36 months parts
Optional Configurations: For installation on either side of the stairs
Rail extension brackets: To create no intrusion at top landing
Outdoor package: Suitable for moderate climates, includes stainless steel rack
and support legs, and zinc hardware for rust resistance; UV-rated, water repellent closed cell
foam seat with cover and clip seatbelt; RF remote controls; and upgraded
battery for long-lasting charge in varying temperatures
Other Options: Continuous charge system, flip-up rail for bottom landing, emergency stop button and radio frequency remote controls.
-
Applications: Residential, indoor, straight-run stairway
Standard Capacity: 350 lb* (159 kg)
Maximum Travel: 32 ft (9.75 m)
Travel speed: 15 ft/min (0.08 m/s)
Motor: 1/3 hp, 24 VDC power that charges on standard household power
Fold-up width: 10.75″ (27.3 cm)
Fold-out width: 21.5″ (54.6 cm)
Range of incline: 30˚ to 55˚
*for a stair angle greater than 45 degrees, maximum capacity is 300 lb.
We Service most brands!
We specialize in reconditioned Acorn 130 (300lb capacity), Bruno 3000 (300lb capacity), Bruno 3050 (350lb capacity), and Bruno 2010 (400lb capacity). We are affiliated with AmeriGlide, Handicare, and Savaria for new lift installs.
